STEREO MICROSCOPE GSS-ST0745

Category:

รายละเอียด

STEREO MICROSCOPE

Model :  GSS-ST0745

◆ High Quality optical system, and optical components coated with special coating created a high-quality optical system.

◆ Standard magnification 7-45x

◆ Long Working distance to create enough space for the uses

◆ Suit to ergonomic design, feel less fatigue when long time use

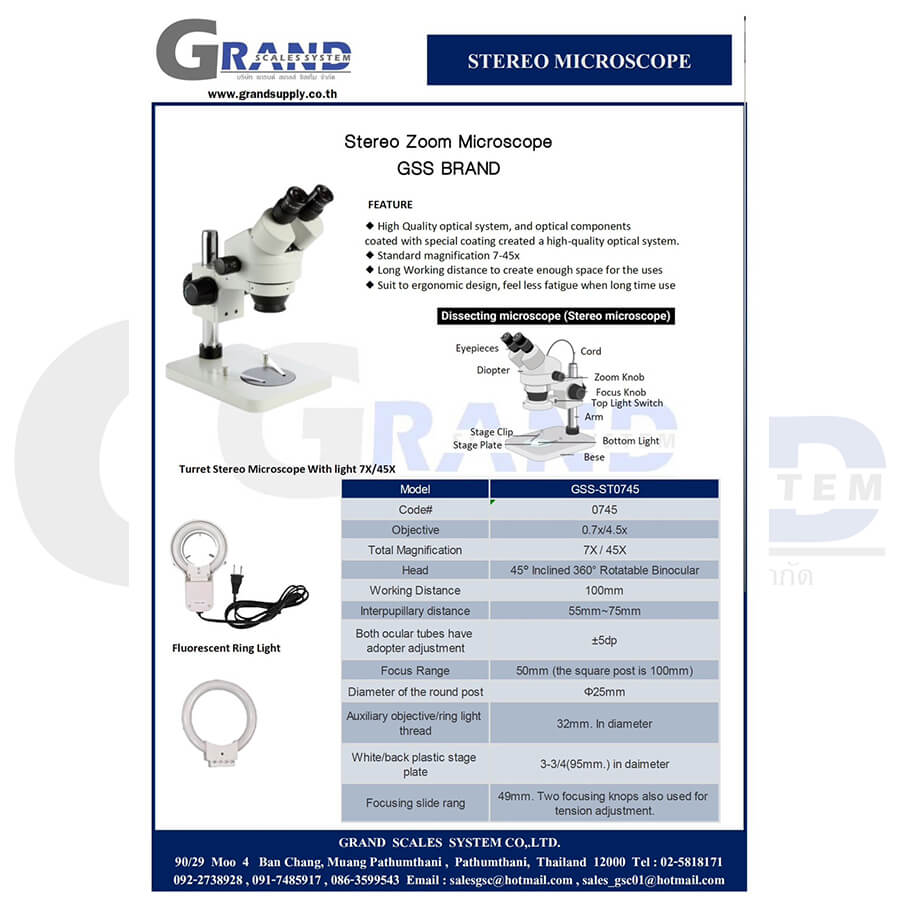

Model GSS-ST0745
Code# 0745
Objective 0.7x/4.5x
Total Magnification 7X / 45X
Head 45° Inclined 360° Rotatable Binocular
Working Distance 100mm
Interpupillary distance 55mm~75mm
Both ocular tubes have adopter adjustment ±5dp
Focus Range 50mm (the square post is 100mm)
Diameter of the round post Φ25mm
Auxiliary objective/ring light thread 32mm. In diameter
White/back plastic stage plate 3-3/4(95mm.) in daimeter
Focusing slide rang 49mm. Two focusing knops also used for tension adjustment.
